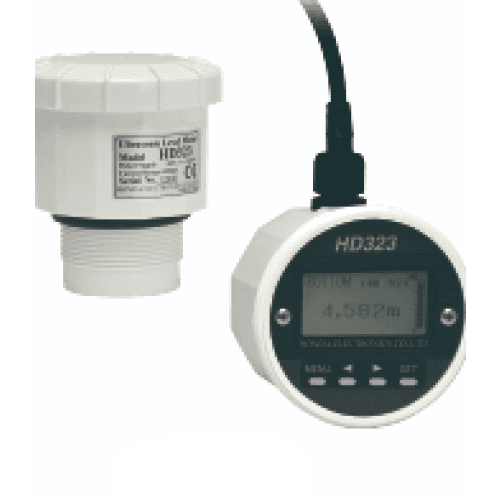

| Model No. | HD323 | |
|---|---|---|
| Number of channels | 1 | |
| Frequency | 50kHz | |
| Measurement target | liquid | |
| Measurement distance range | 0.25 to 7.5m | |
| Resolution | Measurement | 1mm |
| Display | 1mm | |
| Accuracy | ±0.25%F.S. (±1.88cm) |
|
| Data update cycle | 10sec | |
| Sensor directive angle (beam angle) | 14°(-6dB) / 10°（-3dB) | |
| Power source | Voltage | 24VDC |
| Power consumption | 0.6W | |
| Display | Graphic LCD | |
| Display size | 50 x 25mm | |
| Output | 4-20 mA current | Resolution: 12 bits (Max. load resistance 500Ω 24V) |
| Ambient operating temperature | -20 to 70℃ | |
| Material | PP (polypropylene) | |
| Protection | IP65 equivalent (without lid: IP20 equivalent) | |
| Dimensions | dia. 93 x 110mm | |
| Cable length | 10m | |
| Weight | 350g | |
| Mounting screw | G2 (PF2) | |
Features
Two-wire interface can suppress the cost of installation, wiring and operation.
What is two-wire system?
Two-wire system supplies electric power through the data line. Electrical wiring is completed only with two lines, power + data and ground.
Four screen mode can be selected
Large display is adopted for HD323 (Display size : 50 x 25mm, 49% larger than HD320)
●Mask function
Unnecessary signal can be eliminated from the received signal by manually.
Echo signal from existing structure positioned between sensor and target cause interference. Mask function removes these unnecessary echo effectively.
